Size: 2” up to 60“(DN50 up to DN1500)

Pressure Rating: ASME 150#,300#,600#,900#,1500#, 2500#

Materials: Carbon Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.

End Connection: Flanged RF, FF, RTJ, BW

Operator: Hand wheel, Gear OP.

Specification:

• Design – API 600 / ASME B16.34
• Face to Face – ASME B16.10
• End to End – ASME B16.10
• End Flange – ASME B16.5
• BW End – ASME B16.25
• Test – API598
• Special – NACE MR-01-75

Features:

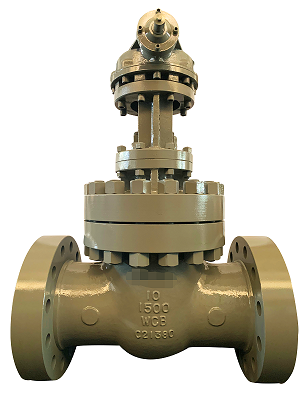

• Bolted Bonnet or Pressure Seal Bonnet
• Flexible Wedge
• Full Port
• Outside Screw and Yoke (OS&Y), Rising Stem
• Extended Bonnet For Cryogenic Services
• Locking Device Optional
• By pass on Request
