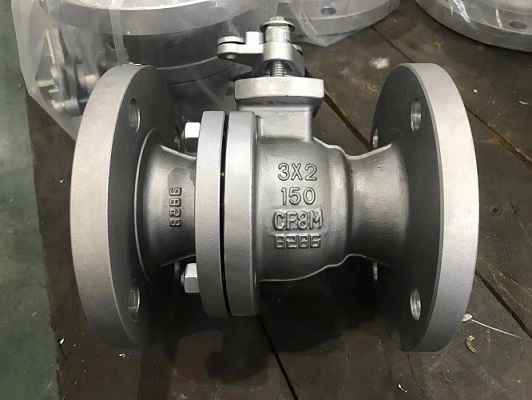

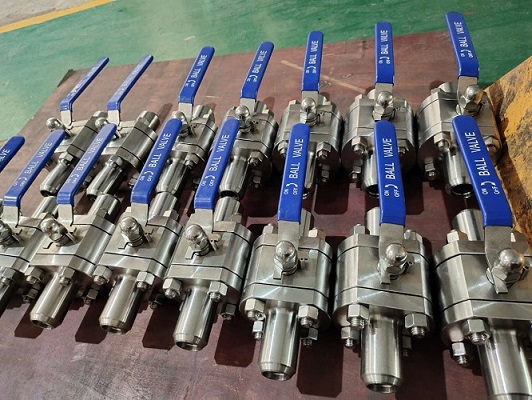

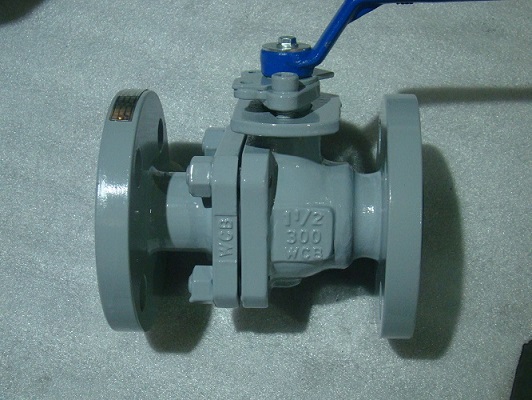

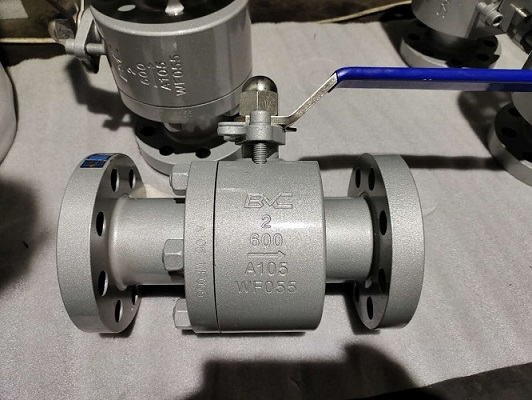

Bonny Valve has very extended experience in manufacturing of Floating Ball Valves

Size ½" up to 10"(DN 15 up to DN 250)

• ½" to 10" – 150#
• ½" to 8" – 300# ­­­­
• ½" to 4" – 600#
• ½" to 1 ½" – 900#, 1500# & 2500#

Pressure Rating: ASME 150# to 2500#

Materials: Carbon Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.

Seating: Soft Seated (PTFE/RPTFE /PEEK/NYLON/DEVLON) and Metal Seated

End Connection: Flanged RF/RTJ, BW, FNPT & SW Ends

Operator: Lever/Wrench, Gear Operated

Specification & Standards:

• Design – API 6D / API 608 / BS5351 / ASME B16.34
• Face to Face – ASME B16.10
• End Flange – ASME B16.5
• BW End – ASME B16.25
• Test – API598/API6D
• Fire Safe Test – API607/API6FA
• Special – NACE MR-01-75

Features:

• Two Piece or Three Piece
• Bore Type – Reduced Bore or Full Bore

• Anti- Static Device
• Blow- Out Proof Stem
• Fire Safe Design
• Low Emission
