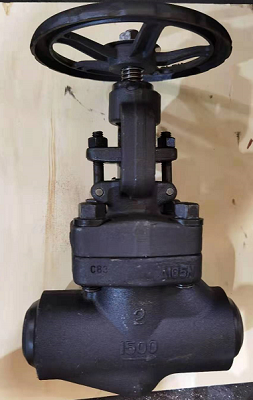

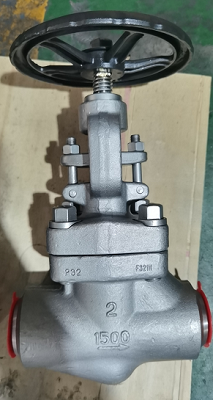

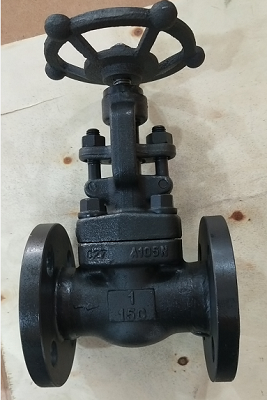

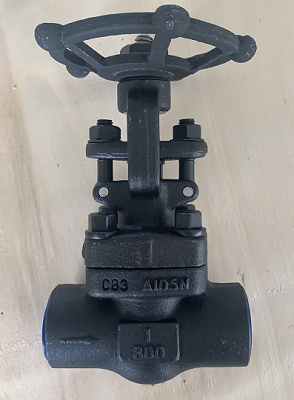

Bonny Valve has very extended experience in manufacturing of Forged Globe Valves

Size: ½" up to 2"(DN 15 up to DN 50)

Pressure Rating: ASME 150# to 2500#

Materials: Forged Carbon Steel, Low Temperature Forged Carbon Steel, Forged Stainless Steel, Forged Duplex Stainless Steel, Forged Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.

End Connection: Flanged RF, FF, RTJ, BW, NPT, SW Ends

Operator: Hand wheel Operated

Specification:

• Design – API 602 / BS 5352 / ASME B16.34
• End Flange – ASME B16.5
• BW End – ASME B16.25
• SW End – ASME B16.11
• Screwed Ends – ASME B1.20.1
• Test – API598
• Special – NACE MR-01-75

Features:

• Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet
• Plug Type Disc/Conic Disc
• Full port or Conventional Port
• Outside Screw and Yoke (OS&Y), Rising Stem
• Extended Bonnet For Cryogenic Services
