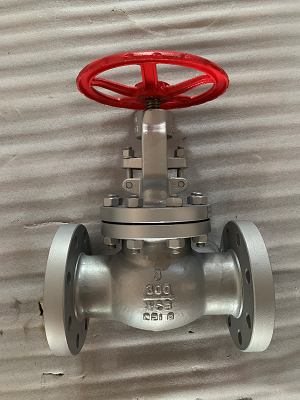

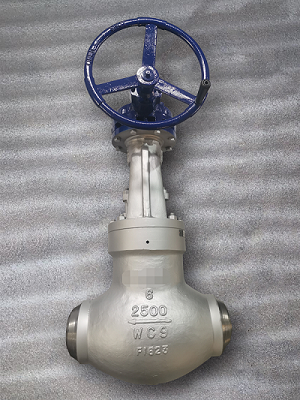

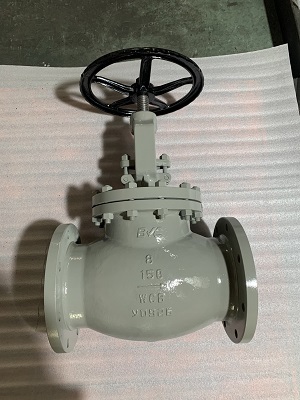

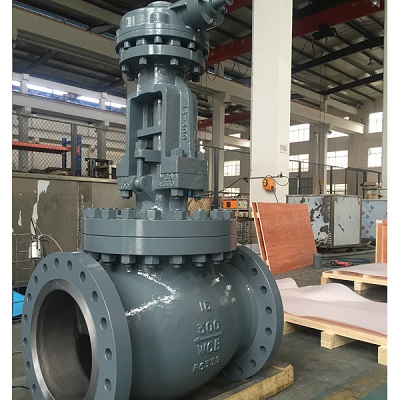

Bonny Valve has very extended experience in manufacturing of Cast Steel Globe Valves

Size: 2” to 24“(DN 50 to DN 600)

Pressure Rating: ASME 150#, 300#, 600#, 900#, 1500#, 2500#

Materials: Carbon Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.

End Connection: Flanged FF, RF, RTJ, BW Ends

Operator : Hand wheel / Gear Operated

Specification:

• Design –BS1873 / ASME B16.34
• Face to Face – ASME B16.10
• End to End – ASME B16.10
• End Flange – ASME B16.5
• BW End – ASME B16.25
• Test – API598
• Special – NACE MR-01-75

Features:

• Bolted Bonnet or Pressure Seal Bonnet
• Plug Type Disc/Conic Disc
• Full port
• Outside Screw and Yoke (OS&Y), Rising Stem
• Extended Bonnet For Cryogenic Services
• Y Pattern/Angle Globe Valves/Bellow sealed Globe Valves
